WSP für rotierende Werkzeuge

REMX1705EN-JS

Produktinformationen

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Art   [Ausbreiten ]

Art   [Ausbreiten ]

Durchmesser (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name der Sorte Hartmetall
Sorte F7030
ANSI REMX1705EN-JS
Lager
Längeneinheit M

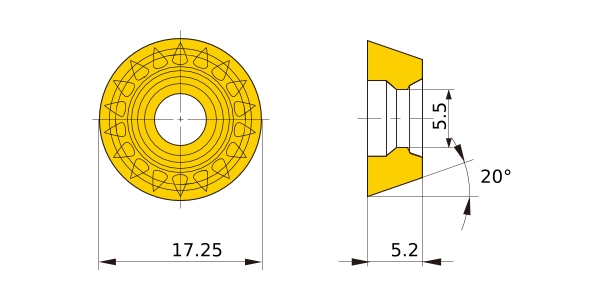

D1 5.5
IC 17.25
AN 20°
S 5.2
2D Modell (DXF)
CAD Dateiname Download
REMX1705EN-JS
CAD
