Ersatzteile >SLV250110030A

Ersatzteile

SLV250110030A

Produktinformationen

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Art   [Ausbreiten ]

Art   [Ausbreiten ]

Durchmesser (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

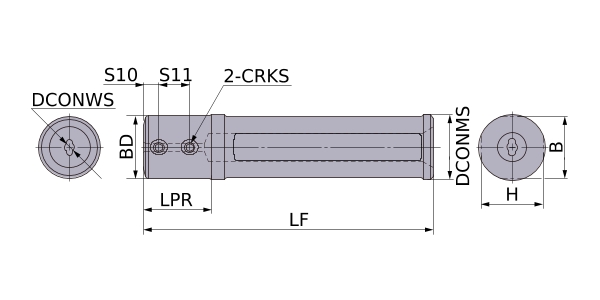

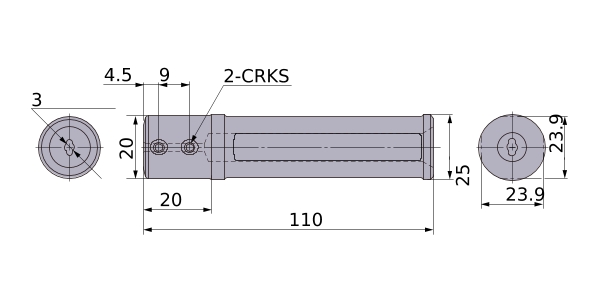

Lager
Längeneinheit M
DCONWS 3
DCONMS 25
BD 20
B 23.9
LF 110
LPR 20
H 23.9
S10 4.5
S11 9
2D Modell (DXF)
CAD Dateiname Download
SLV250110030A
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Detailliertes Modell (STP,STL)
CAD Dateiname Download
SLV250110030A
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Show more

Lager

:Lagerstandard
:Kein Standard, Herstellung nur auf Anfrage.
:Lagerstandard Wird durch neue Produkte ersetzt.
:Lagerstandard in Japan.

  • Innenhalter

  • Einstechen, andere

  • Gewindehalter

  • Ersatzteile
