Boring >S_STFC_C >C16RSTFCR11

Boring

S_STFC_C
（S Type Boring Bar）

C16RSTFCR11

Product Information

  • ISO standard.
  • 7°positive insert.
  • Screw-on type
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

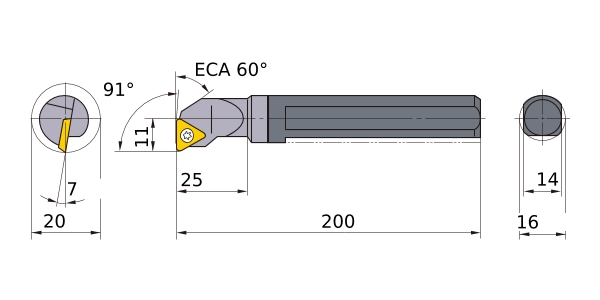

DMIN 20
DCON 16
KAPR 91°
LF 200
LDRED 25
WF 11
H 14
GAMF 7
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number TC__1102
