Boring >C_SCLC >C08-07SCLCL04-090

Boring

C_SCLC
（Boring Bars ｆor Small Parts Machining）

C08-07SCLCL04-090

Product Information

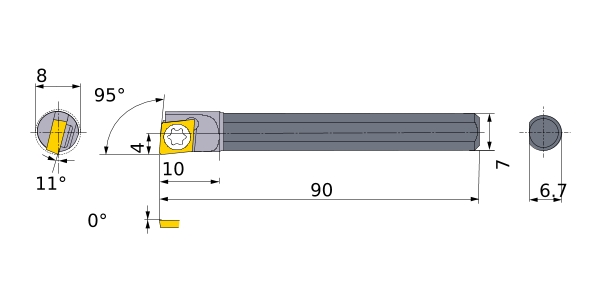

  • Carbide shank
  • Screw-on type
  • 7°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Hand R
Stock
Unit of Length M
DMIN 3
DCON 3
LF 50
LU 10.2
CDX 6
WF 1.3
H 2.7
WF2 1.2
PDX 0.6
RE 0.03
Peripheral effective cutting edge count: ZEFP 1
Classification of Grades
Coated・Carbide VP15TF
2D Model (DXF)
CAD data name Download
C08-07SCLCL04-090
CAD
