Boring >C_SVPB_C_C_C >C34-25SVPBR16-180-C

Boring

C_SVPB_C_C_C
（Boring Bars ｆor Small Parts Machining）

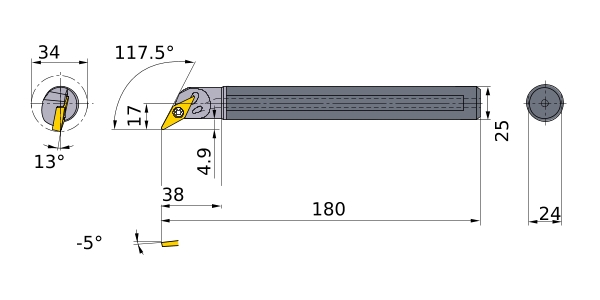

C34-25SVPBR16-180-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 34
DCONMS 25
KAPR 117.5°
LF 180
LDRED 38
WF 17
H 24
WF2 4.9
GAMP -5°
GAMF 13°
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__1604
2D Model (DXF)
CAD data name Download
C34-25SVPBR16-180-C
CAD
