Boring >S_SVPB_C_S >S20-12SVPBL11-150-C

Boring

S_SVPB_C_S
（Boring Bars ｆor Small Parts Machining）

S20-12SVPBL11-150-C

Product Information

  • Carbide shank
  • Screw-on type
  • WITH COOLANT HOLE

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

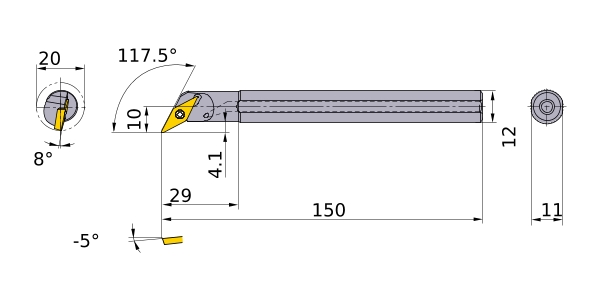

DMIN 20
DCONMS 12
KAPR 117.5°
LF 150
LDRED 29
WF 10
H 11
WF2 4.1
GAMP -5°
GAMF 8°
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__1103
2D Model (DXF)
CAD data name Download
S20-12SVPBL11-150-C
CAD
Disclaimer
