Boring >H_SCLC >H10-08SCLCR06-090

Boring

H_SCLC
（Boring Bars ｆor Small Parts Machining）

H10-08SCLCR06-090

Product Information

  • Hard steel shank without coolant hole
  • Screw-on type

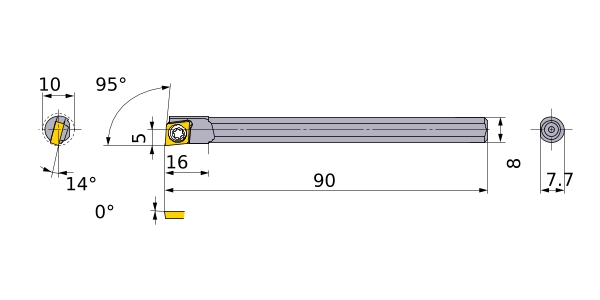

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 10
DCONMS 8
KAPR 95°
LF 90
LDRED 16
WF 5
H 7.7
GAMP 0°
GAMF 14°
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__0602
2D Model (DXF)
CAD data name Download
H10-08SCLCR06-090
