VSD
（Straight shank）
VSDD0070
The actual product may differ from the displayed image.

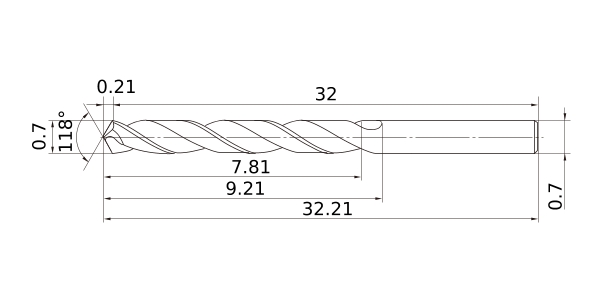

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Stock |
|
| Unit of Length | M |
| DC | 0.7 |
| DCON | 0.7 |
| SIG | 118° |
| LF | 32 |
| OAL | 32.21 |
| LU | 7.81 |
| LCF | 9.21 |
| PL | 0.21 |
| Effective Cutting Edge | 2 |
| Max. Cutting EdgeDiameter Tolerance | 0 |
| Min. Cutting EdgeDiameter Tolerance | -0.01 |
| Type of Coolant | External |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
