Drills >TAW >TAWLN1900S25

Drills

TAW
(SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES)

TAWLN1900S25

Product Information

  • Wavy cutting edge design for good chip control.
  • Serration geometry for accurate insert location.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock

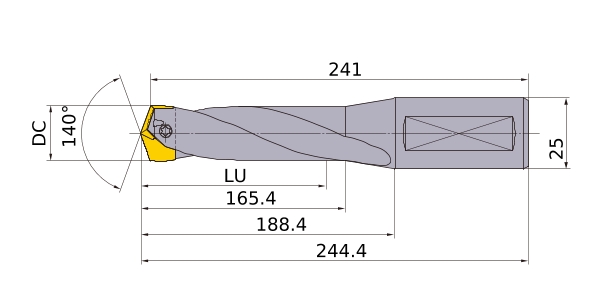

Unit of Length M
DCON 25
SIG 140°
LF 241
OAL 244.4
LH 188.4
LBX 165.4
ld 8
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
TAWLN1900S25
CAD

3D Detail Model (STP,STL)
CAD data name Download
TAWLN1900S25
CAD

3D Light Model (STP,STL)
CAD data name DC Download
TAWLN1900S25_MD18_5
18.5 CAD
TAWLN1900S25_MD18_6
18.6 CAD
TAWLN1900S25_MD18_7
18.7 CAD
TAWLN1900S25_MD18_8
18.8 CAD
TAWLN1900S25_MD18_9
18.9 CAD
TAWLN1900S25_MD19_0
19 CAD
TAWLN1900S25_MD19_1
19.1 CAD
TAWLN1900S25_MD19_2
19.2 CAD
TAWLN1900S25_MD19_3
19.3 CAD
TAWLN1900S25_MD19_4
19.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
