Drills >TAW >TAWLN2500S32

Drills

TAW
(SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES)

TAWLN2500S32

Product Information

  • Wavy cutting edge design for good chip control.
  • Serration geometry for accurate insert location.

The actual product may differ from the displayed image.

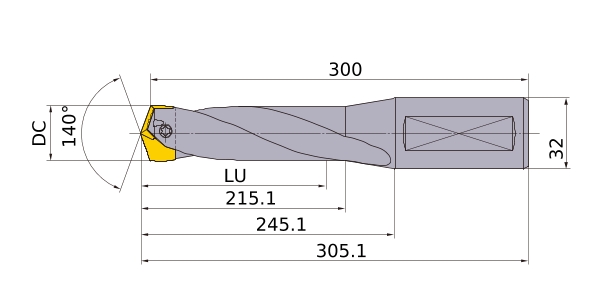

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M
DCON 32
SIG 140°
LF 300
OAL 305.1
LH 245.1
LBX 215.1
ld 8
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
TAWLN2500S32
CAD

3D Detail Model (STP,STL)
CAD data name Download
TAWLN2500S32
CAD

3D Light Model (STP,STL)
CAD data name DC Download
TAWLN2500S32_MD24_5
24.5 CAD
TAWLN2500S32_MD24_6
24.6 CAD
TAWLN2500S32_MD24_7
24.7 CAD
TAWLN2500S32_MD24_8
24.8 CAD
TAWLN2500S32_MD24_9
24.9 CAD
TAWLN2500S32_MD25_0
25 CAD
TAWLN2500S32_MD25_1
25.1 CAD
TAWLN2500S32_MD25_2
25.2 CAD
TAWLN2500S32_MD25_3
25.3 CAD
TAWLN2500S32_MD25_4
25.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
