Drills >TAW >TAWLN3000S32

Drills

TAW
(SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES)

TAWLN3000S32

Product Information

  • Wavy cutting edge design for good chip control.
  • Serration geometry for accurate insert location.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

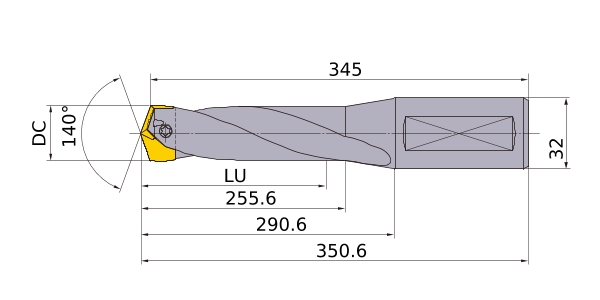

Diameter (Unit)
Stock
Unit of Length M
DCON 32
SIG 140°
LF 345
OAL 350.6
LH 290.6
LBX 255.6
ld 8
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
TAWLN3000S32
CAD

3D Detail Model (STP,STL)
CAD data name Download
TAWLN3000S32
CAD

3D Light Model (STP,STL)
CAD data name DC Download
TAWLN3000S32_MD29_5
29.5 CAD
TAWLN3000S32_MD29_6
29.6 CAD
TAWLN3000S32_MD29_7
29.7 CAD
TAWLN3000S32_MD29_8
29.8 CAD
TAWLN3000S32_MD29_9
29.9 CAD
TAWLN3000S32_MD30_0
30 CAD
TAWLN3000S32_MD30_1
30.1 CAD
TAWLN3000S32_MD30_2
30.2 CAD
TAWLN3000S32_MD30_3
30.3 CAD
TAWLN3000S32_MD30_4
30.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
