MCAH
（Drill For Composites）
MCAH0486X08S050
The actual product may differ from the displayed image.

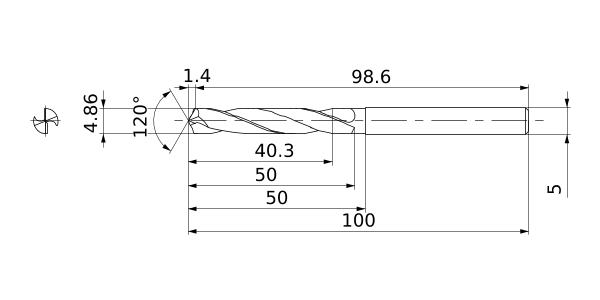

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | DT2030 |
| Stock |
|
| Unit of Length | M |
| DC | 4.86 |
| DCON | 5 |
| SIG | 120° |
| LF | 98.6 |
| OAL | 100 |
| LH | 50 |
| LU | 40.3 |
| LCF | 50 |
| FHA | 20° |
| ld | 8 |
| PL | 1.4 |
| Effective Cutting Edge | 2 |
| Max. Cutting EdgeDiameter Tolerance | 0 |
| Min. Cutting EdgeDiameter Tolerance | -0.018 |
| Type of Coolant | External |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
