Drills >DXAS >DXAS2000X3F25

Drills

DXAS
（Exchangeable Head Carbide Drill）

DXAS2000X3F25

Product Information

  • Dramatically reduced running costs with improved exceptionally long life
  • High precision and efficiency comparable to solid carbide drills
  • High-strength fastening system with intuitive mounting operation

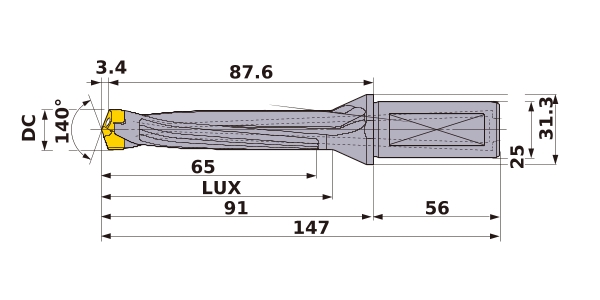

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DF 31.3
DCONMS 25
SIG 140°
LF 87.6
OAL 147
LPR 91
LU 65
LS 56
ld 3
PL 3.4
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Insert for Rotating Tools

  • Spare Parts
