Indexable End Mills >SRM2 >SRM2200AM10L45

Indexable End Mills

SRM2


SRM2200AM10L45

Product Information

  • Through coolant hole type.
  • Suitable for roughing to semi-finishing of small and medium molds.
  • Low resistance inserts.
  • High rigidity body design.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

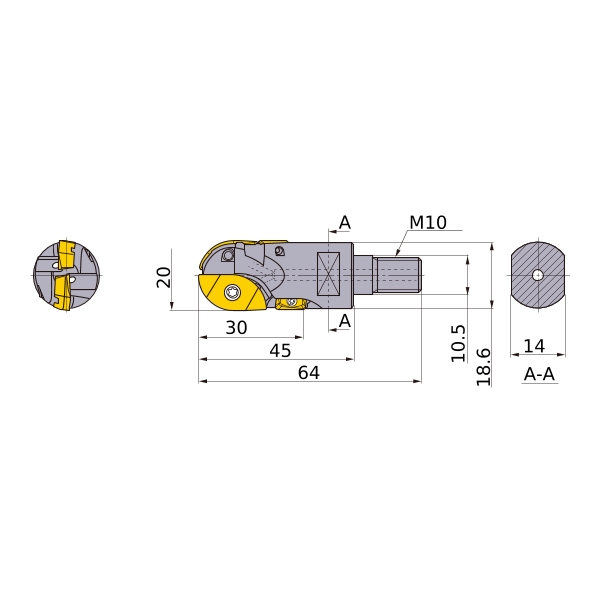

Unit of Length M
DC 20
DCON 10.5
DCSFMS 18.6
LF 45
OAL 64
S10 14
APMX 30
CRKS M10
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 2
