Indexable End Mills >WWX400 >WWX400R5003SA32M

Indexable End Mills

WWX400
（90˚ FACE MILLING CUTTER）

WWX400R5003SA32M

Product Information

  • The indexable inserts with 6 usable cutting edges offer lower cost per cutting edge
  • Innovative geometry generates low cutting forces.
  • reliable machining
  • The set bolt is built in.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

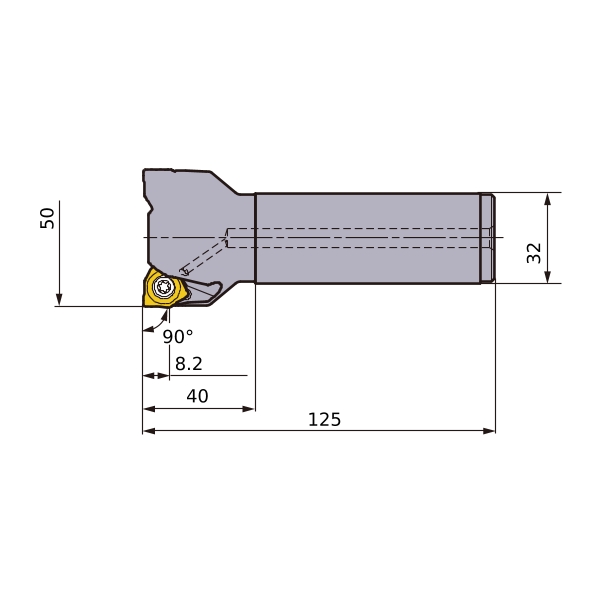

DC 50
DCON 32
KAPR 90°
RMPX 0.4°
LF 125
LH 40
APMX 8.2
GAMP -6°
GAMF -12.8°
WT 0.8
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 16000
