End Mills > WJX09

End Mills

WJX09
（Double-sided Insert Type High Feed Radius Milling Cutter）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Double sided Z Geometry.
  • Smooth chip discharge.
  • Excellent sharpness enables reduced cutting noise and provides long tool life

The actual product may differ from the displayed image.

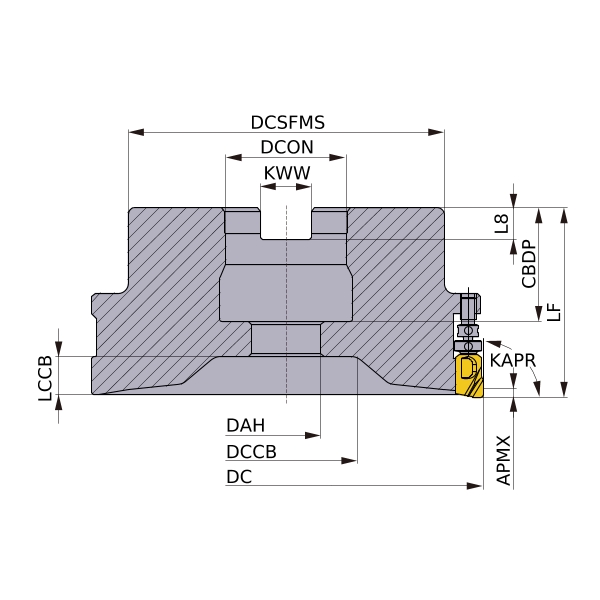

For details, please check the dimensions below.

Type1 [Expand]

Type2 [Expand]

  1 2
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
WJX09R2502SA25EL Type1 CAD R
WJX09R2502SA25L Type1 CAD R
WJX09R2502SA25S Type1 CAD R
WJX09R2503SA25L Type1 CAD R
WJX09R2503SA25S Type1 CAD R
WJX09R2802SA25EL Type2 CAD R
WJX09R2802SA25L Type2 CAD R
WJX09R2802SA25S Type2 CAD R
WJX09R2803SA25L Type2 CAD R
WJX09R2803SA25S Type2 CAD R
WJX09R3202SA32EL Type1 CAD R
WJX09R3202SA32L Type1 CAD R
WJX09R3202SA32S Type1 CAD R
WJX09R3203SA32L Type1 CAD R
WJX09R3203SA32S Type1 CAD R
WJX09R3502SA32EL Type2 CAD R
WJX09R3503SA32L Type2 CAD R
WJX09R3503SA32S Type2 CAD R
WJX09R3504SA32L Type2 CAD R
WJX09R3504SA32S Type2 CAD R
R PRFRAD Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 ap APMX HTB DCN CDI DCINX BDX CWX LBX L1 L L24 FLGT CBDP OAL LPR L2 LH L19 LU LF D4 DCON D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
2 2 14 1.2 180 300 25 25 -12°
2 2 14 1.2 120 200 25 25 -12°
2 2 14 1.2 60 140 25 25 -12°
3 3 14 1.2 120 200 25 25 -12°
3 3 14 1.2 60 140 25 25 -12°
2 2 16.9 1.2 40 300 25 28 -11°
2 2 16.9 1.2 40 200 25 28 -11°
2 2 16.9 1.2 40 140 25 28 -11°
3 3 16.9 1.2 40 200 25 28 -11°
3 3 16.9 1.2 40 140 25 28 -11°
2 2 20.9 1.2 180 300 32 32 -11°
2 2 20.9 1.2 120 200 32 32 -11°
2 2 20.9 1.2 70 150 32 32 -11°
3 3 20.9 1.2 120 200 32 32 -11°
3 3 20.9 1.2 70 150 32 32 -11°
2 2 23.8 1.2 50 300 32 35 -11°
3 3 23.8 1.2 50 200 32 35 -11°
3 3 23.8 1.2 50 150 32 35 -11°
4 4 23.8 1.2 50 200 32 35 -11°
4 4 23.8 1.2 50 150 32 35 -11°
  1 2

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Insert for Rotating Tools
