End Mills >VPX300_SHELL >VPX300R08005CA06330

End Mills

VPX300_SHELL
（Multi-functional Cutter for High Efficiency Machining）

VPX300R08005CA06330

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

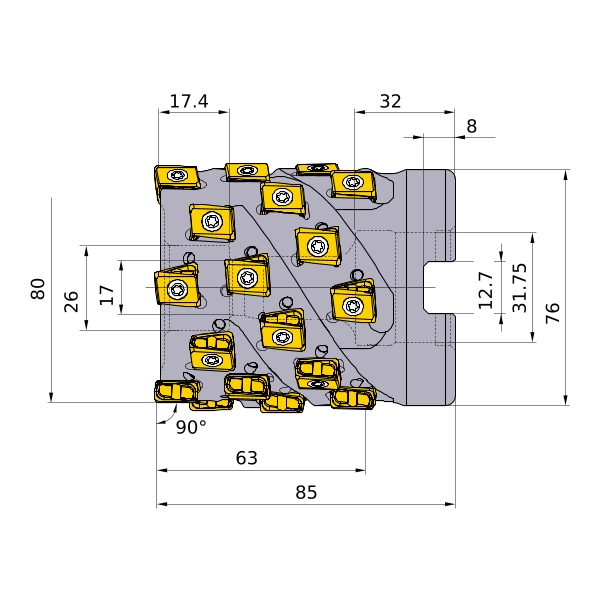

Unit of Length M
DC 80
DCON 31.75
DCSFMS 76
DAH 17
DCCB 26
KAPR 90°
RMPX 0.45°
L8 8
LF 85
CBDP 32
LCCB 17.4
KWW 12.7
APMX 63
GAMP -6°
GAMF -22.5°
WT 2.06
Cutting item count: CICT 30
Peripheral effective cutting edge count: ZEFP 5
Face effective cutting edge count: ZEFF 5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Insert for Rotating Tools

  • Spare Parts
