End Mills >AXD4000_SCREW_IN >AXD4000R252AM1228B

End Mills

AXD4000_SCREW_IN
（For Aluminium Alloy）

AXD4000R252AM1228B

Product Information

  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.

The actual product may differ from the displayed image.

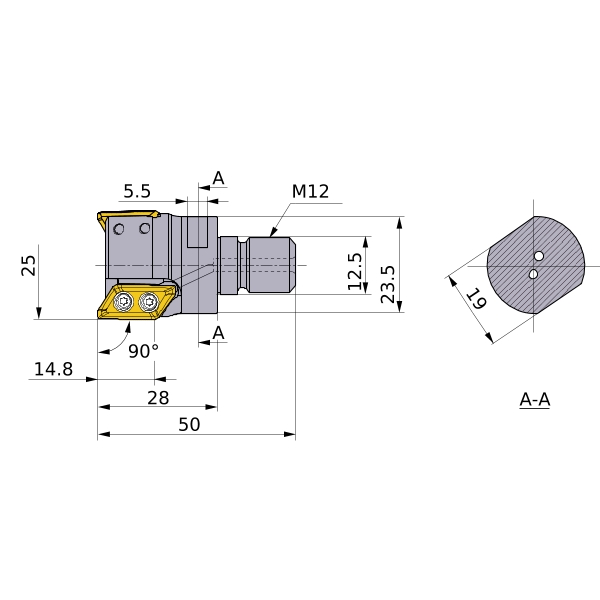

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 25
DCON 12.5
DCSFMS 23.5
KAPR 90°
LF 28
OAL 50
S10 19
APMX 14.8
GAMP +21°
GAMF +14°
WT 0.06
CRKS M12
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Face effective cutting edge count: ZEFF 2
RPMX 49000
