End Mills >AXD4000_SCREW_IN >AXD4000R403AM1635A

End Mills

AXD4000_SCREW_IN
（For Aluminium Alloy）

AXD4000R403AM1635A

Product Information

  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.

The actual product may differ from the displayed image.

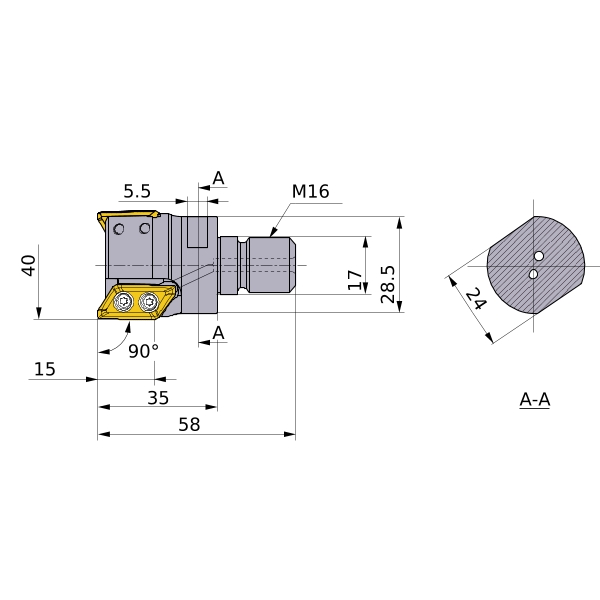

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 40
DCON 17
DCSFMS 28.5
KAPR 90°
LF 35
OAL 58
S10 24
APMX 15
GAMP +21°
GAMF +14°
WT 0.18
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
RPMX 38000
