External Cutting >PSSN >PSSNR3232P15

External Cutting

PSSN


PSSNR3232P15

Product Information

  • Lever lock type.
  • ISO standard.
  • Various holder shapes.
  • Suitable for light to heavy cutting.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

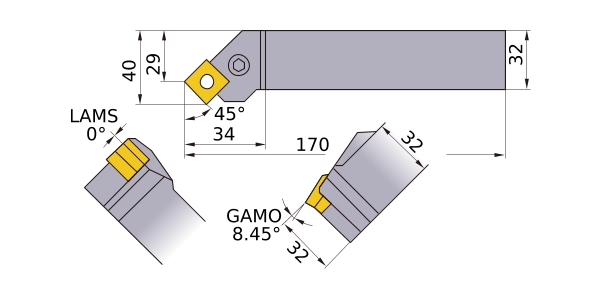

B 32
KAPR 45°
LF 170
LH 34
WF 40
H 32
HF 32
WF2 29
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__1506
