External Cutting >SCLC-SM >SCLCL0808K06-SM

External Cutting

SCLC-SM


SCLCL0808K06-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.

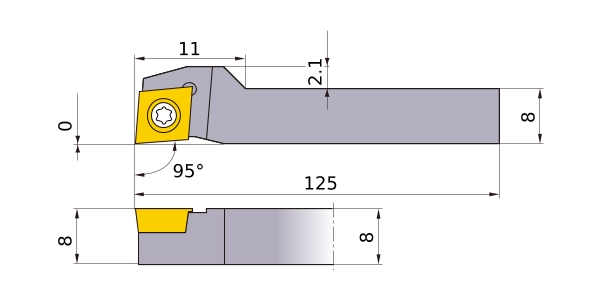

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SCLCL0808K06-SM
Hand L
Stock
Unit of Length M
B 8
KAPR 95°
LF 125
LH 11
HBKW 2.1
H 8
HF 8
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__0602
2D Model (DXF)
CAD data name Download
SCLCL0808K06-SM
CAD
