External Cutting

SDJC


SDJCR1010E07

Product Information

  • Screw-on type
  • 7°positive insert.

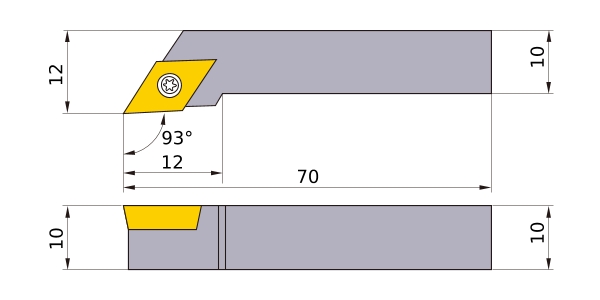

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
B 10
KAPR 93°
LF 70
LH 12
WF 12
H 10
HF 10
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__0702
2D Model (DXF)
CAD data name Download
SDJCR1010E07
CAD

3D Detail Model (STP,STL)
CAD data name Download
SDJCR1010E07
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SDJCR1010E07_MR0_4
0.4 CAD
