Face Cutter >ASX445_MM >ASX445-200C08R

Face Cutter

ASX445_MM
（GENERAL CUTTING）

ASX445-200C08R

Product Information

  • Precise but inexpensive molded type 20° positive insert.
  • Screw-on type.
  • A wide range of chip breakers.
  • High rigidity due to employment of a carbide shim.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

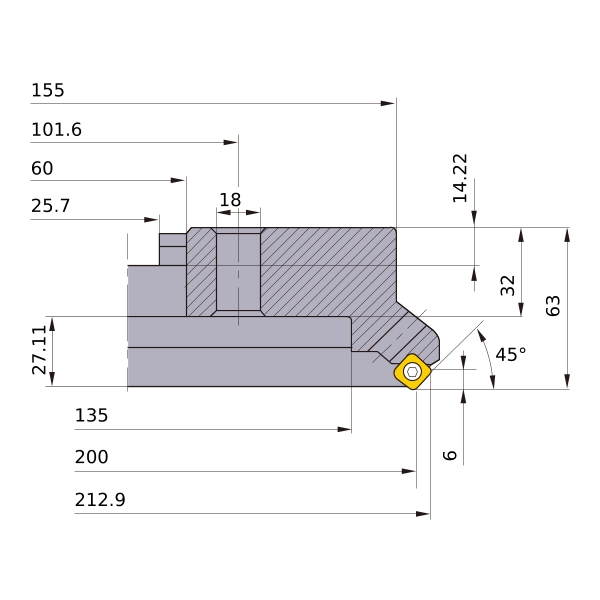

DC 200
DCX 212.9
DCON 60
DCSFMS 155
DAH 18
DCCB 135
KAPR 45°
L8 14.22
LF 63
CBDP 32
LCCB 27.11
APMX 13
RE 1
Peripheral effective cutting edge count: ZEFP 6
R Tolerance - -0.015
R Tolerance + 0.015
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
