Face Cutter >VOX400_MM >VOX400-200C26R

Face Cutter

VOX400_MM
(STRONG EDGE TYPE FOR CAST IRON)

VOX400-200C26R

Product Information

  • Economical due to the use of 8 cutting edges.
  • Vertical inserts with high strength cutting edge.

The actual product may differ from the displayed image.

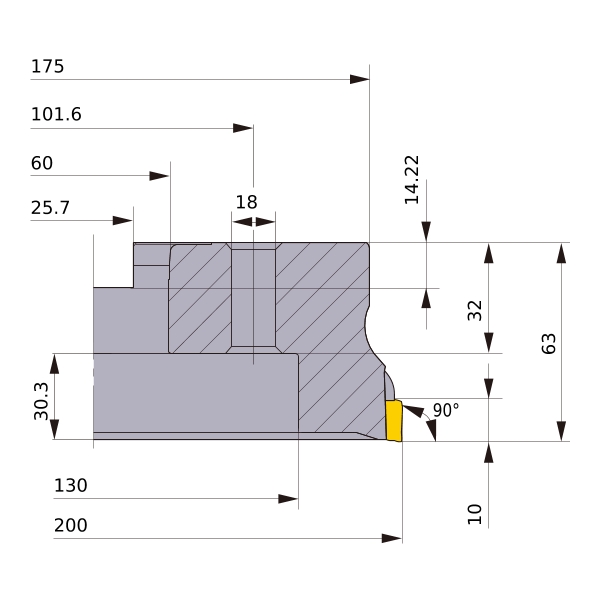

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 200
DCON 60
DCSFMS 175
DAH 18
DCCB 130
KAPR 90°
L8 14.22
LF 63
CBDP 32
LCCB 30.3
KWW 25.7
APMX 10
GAMP -6°
GAMF -18°
WT 7.9
DBC 101.6
Peripheral effective cutting edge count: ZEFP 26
2D Model (DXF)
CAD data name Download
VOX400-200C26R
CAD

3D Detail Model (STP,STL)
CAD data name Download
VOX400-200C26R
CAD

3D Light Model (STP,STL)
CAD data name Download
VOX400-200C26R_
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
