Face Cutter >AHX640W_MM >AHX640W-100B10R

Face Cutter

AHX640W_MM
（HIGH FEED CUTTING FOR CAST IRON）

AHX640W-100B10R

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

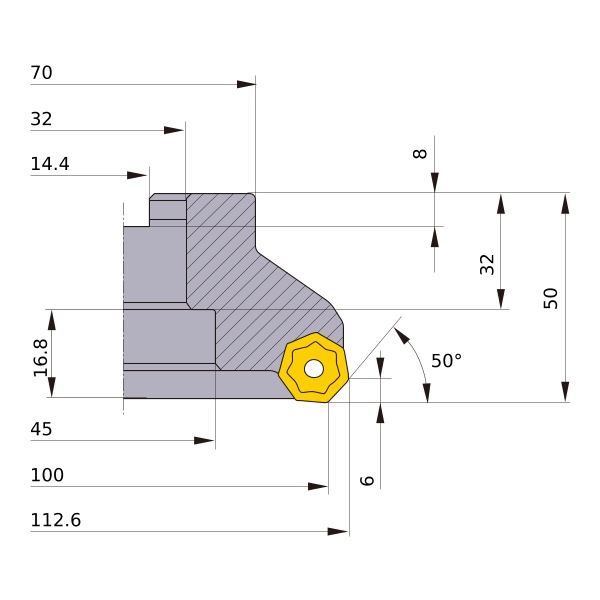

DC 100
DCX 112.6
DCON 32
DCSFMS 70
DCCB 45
KAPR 50°
L8 8
LF 50
CBDP 32
LCCB 16.8
KWW 14.4
APMX 6
GAMP -6°
GAMF -4°
WT 2.1
Peripheral effective cutting edge count: ZEFP 10
