Grooving Others >GWS00 >GWSR2012K00-F42

Grooving Others

GWS00
（External for Swiss-type Automatic Lathes）

GWSR2012K00-F42

Product Information

  • Highly Reliable Insert Clamping
  • High-Rigidity Holder

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

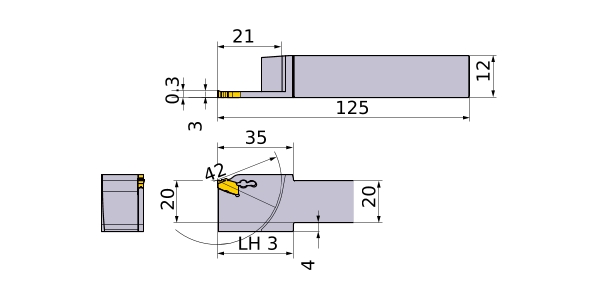

Unit of Length M
CUTDIA 42
B 12
LF 125
LH 35
CDX 21
WF 0.3
H 20
HF 20
HBH 4
CW 3
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
