GTAFR1010-30

Product Information

  • For gang type tool posts.
  • 10-25㎜ wide range of shank sizes
  • High rigidity due to desigh of vertical insert.
  • Economical due to the design of three-corner inserts

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

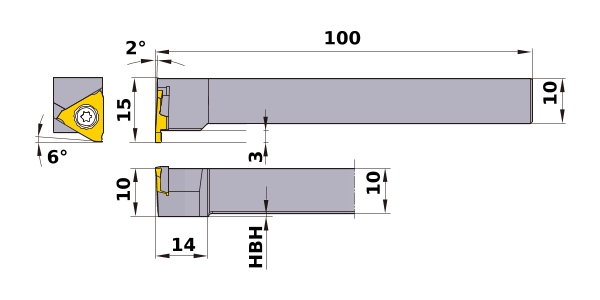

ANSI GTAFR1010-30
Hand R
Stock
Unit of Length M
B 10
B2 2°
LF 100
LH 14
CDX 3
WF 15
H 10
HF 10
Peripheral effective cutting edge count: ZEFP 1
