Grooving GY Series

GYA_D90
（90° type holder）

6G1R9D1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

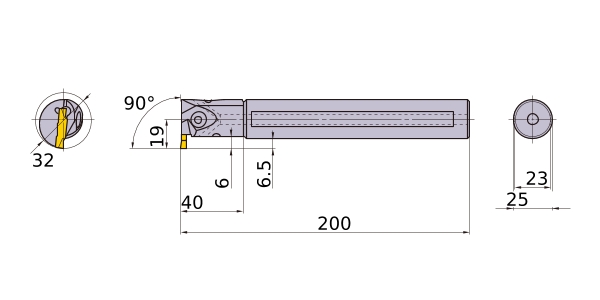

DMIN 32
DCON 25
LF 200
CDX 6
LDRED 40
WF 19
H 23
HF 23
CW 2
WF2 6.5
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYAR25R90B-D06
2D Model (DXF)
CAD data name Download
6G1R9D1
CAD
