Grooving GY Series

MVX


MVX1750X6F25

Product Information

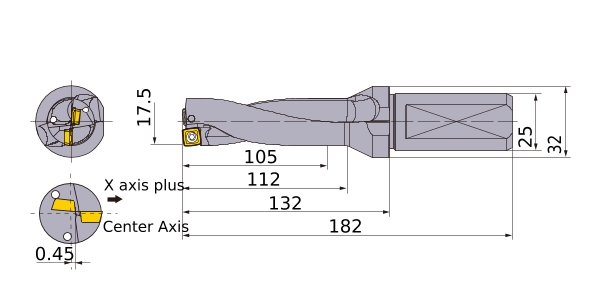

  • Ideal combination of outer CVD insert and inner PVD insert.
  • High rigidity body that enabled L/D=6 deep hole machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 17.5
DCON 25
DCSFMS 32
OAL 182
LPR 132
LU 105
S10 0.45
LBX 112
ld 6
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Type of Coolant Internal
