Grooving GY Series

GYP00
（00° type holder）

1J1L9K1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

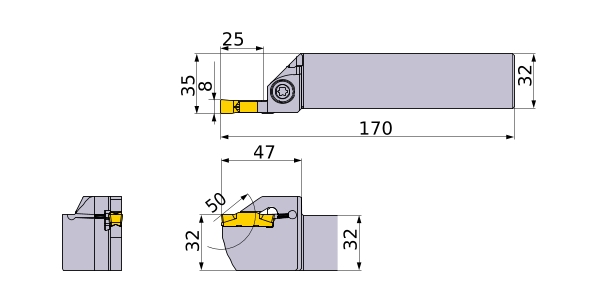

CUTDIA 50
B 32
L4 48
LF 170
LH 47
CDX 25
WF 35
H 32
HF 32
CW 8
Peripheral effective cutting edge count: ZEFP 1
body GYPL3232P00-K25
