Grooving GY Series >GYS00 >SC1L9C1
GYS00
(for swiss style lathes)

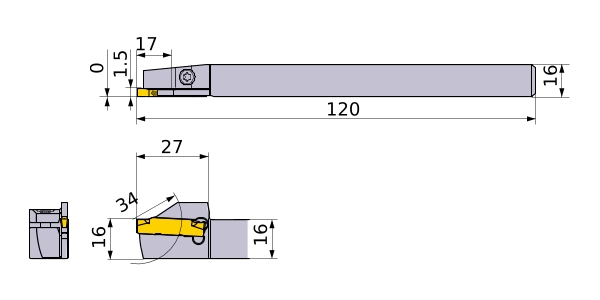

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | L |
Stock | |
Unit of Length | M |
CUTDIA | 34 |
B | 16 |
L4 | 17 |
LF | 120 |
LH | 27 |
CDX | 17 |
H | 16 |
HF | 16 |
CW | 1.5 |
Peripheral effective cutting edge count: ZEFP | 1 |
Modular Holder | GYSL1616JX00-C17 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
