HSK-T Tools >SVVB >H63TH-SVVBN-L16

HSK-T Tools

SVVB


H63TH-SVVBN-L16

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand N
Stock
Unit of Length M

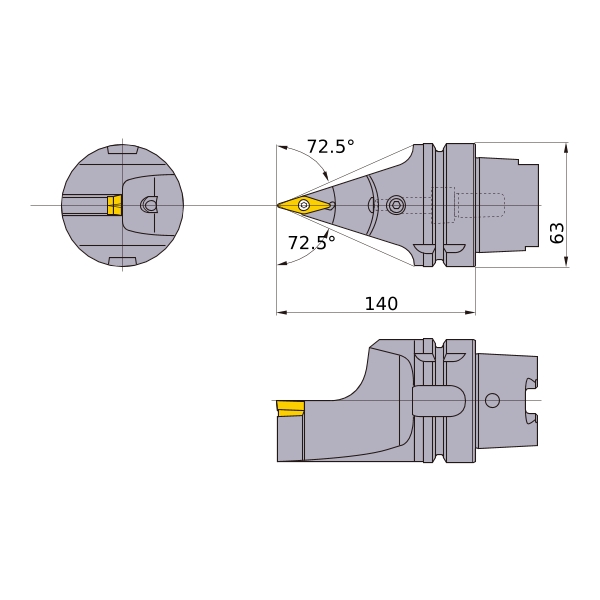

DCONMS 63
B2 72.5°
LF 140
WT 2.2
Peripheral effective cutting edge count: ZEFP 1
