Insert for Rotating Tools

MPMT070308

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UP20M
ANSI MPMT2.522
Stock

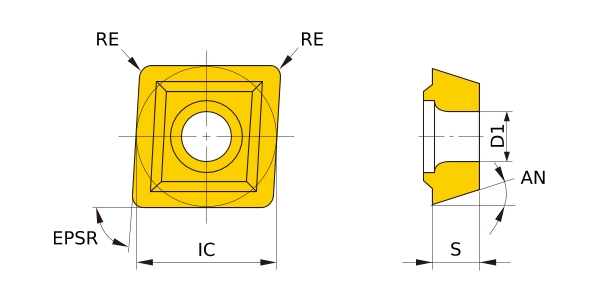

Unit of Length M

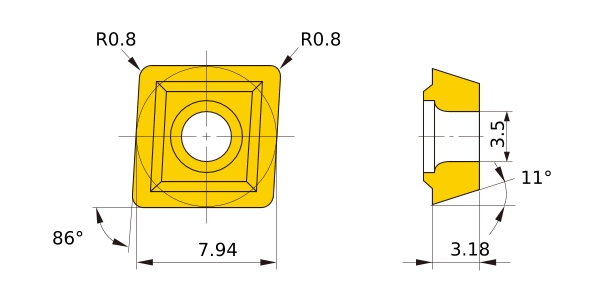

D1 3.5
IC 7.94
EPSR 86°
AN 11°
S 3.18
RE 0.8
Classification of Grades
Non-coated・Carbide UTi20T
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
