Insert for Rotating Tools

SOGX073505-UN

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
ANSI SOGX073505-UN
Stock
Unit of Length M

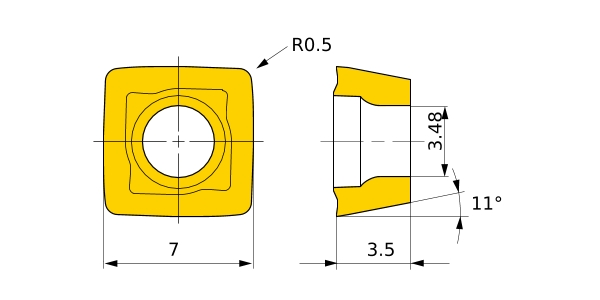

D1 3.48
IC 7
AN 11°
S 3.5
RE 0.5
Breaker UN
2D Model (DXF)
CAD data name Download
SOGX073505-UN
