Small Tools >S_SDUC_C_S >S20-16SDUCL07-150-C

Small Tools

S_SDUC_C_S
（Boring Bars ｆor Small Parts Machining）

S20-16SDUCL07-150-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

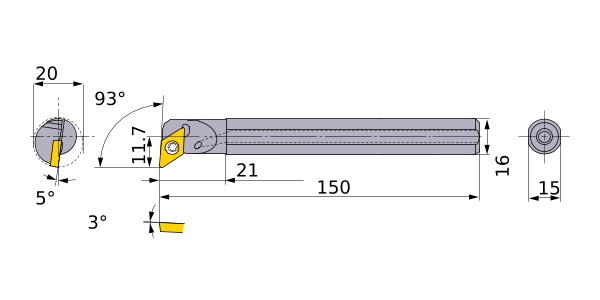

DMIN 20
DCONMS 16
KAPR 93°
LF 150
LDRED 21
WF 11.7
H 15
GAMP 3°
GAMF 5°
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__0702
2D Model (DXF)
CAD data name Download
