Small Tools >C_SVUB_C_C_C >C20-16SVUBL11-180-C

Small Tools

C_SVUB_C_C_C
（Boring Bars ｆor Small Parts Machining）

C20-16SVUBL11-180-C

Product Information

  • Carbide shank
  • Screw-on type
  • WITH COOLANT HOLE

The actual product may differ from the displayed image.

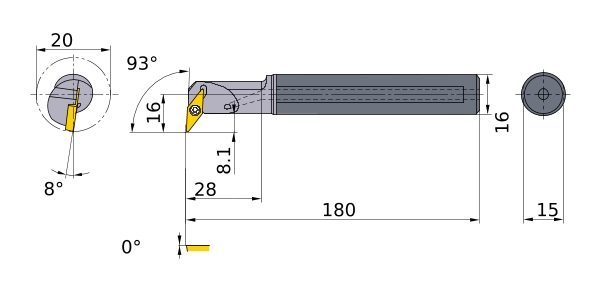

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
DMIN 20
DCONMS 16
KAPR 93°
LF 180
LDRED 28
WF 16
H 15
WF2 8.1
GAMP 0°
GAMF 8°
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__1103
