Small Tools >H_SDUC_C >H14-10SDUCL07-090-C

Small Tools

H_SDUC_C
（Boring Bars ｆor Small Parts Machining）

H14-10SDUCL07-090-C

Product Information

  • Hard steel shank with coolant hole
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

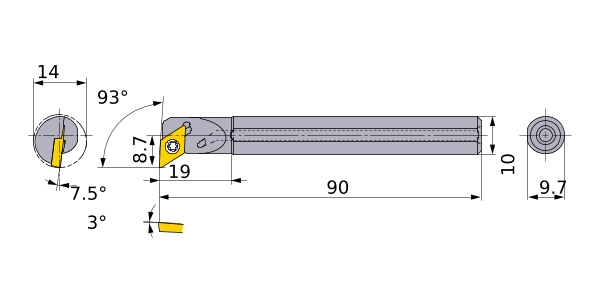

DMIN 14
DCONMS 10
KAPR 93°
LF 90
LDRED 19
WF 8.7
H 9.7
GAMP 3°
GAMF 7.5°
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__0702
2D Model (DXF)
CAD data name Download
H14-10SDUCL07-090-C
