Solid End Mills > VFHVRB

Solid End Mills

VFHVRB
（Corner radius, Short cut length, 4 flute, Irregular helix flutes）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Impact Miracle corner radius end mill for high feed and efficient machining.

The actual product may differ from the displayed image.

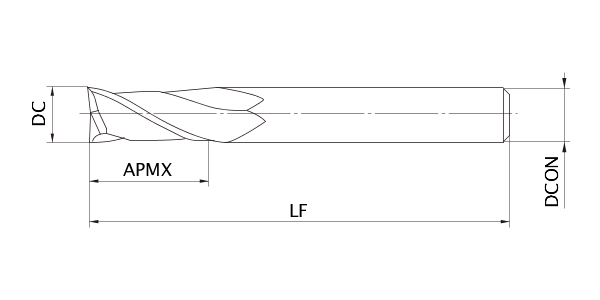

For details, please check the dimensions below.

Type1 [Expand]

Type2 [Expand]

Type3 [Expand]

  1 2 3 4 5
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
VFHVRBD0100R02N004 Type1 CAD
VFHVRBD0100R02N006 Type1 CAD
VFHVRBD0100R02N008 Type1 CAD
VFHVRBD0100R02N010 Type1 CAD
VFHVRBD0100R02N015 Type1 CAD
VFHVRBD0100R02N020 Type1 CAD
VFHVRBD0150R03N004 Type1 CAD
VFHVRBD0150R03N006 Type1 CAD
VFHVRBD0150R03N010 Type1 CAD
VFHVRBD0150R03N015 Type1 CAD
VFHVRBD0150R03N020 Type1 CAD
VFHVRBD0150R03N025 Type1 CAD
VFHVRBD0150R03N030 Type1 CAD
VFHVRBD0200R05N006 Type1 CAD
VFHVRBD0200R05N010 Type1 CAD
VFHVRBD0200R05N015 Type1 CAD
VFHVRBD0200R05N020 Type1 CAD
VFHVRBD0200R05N025 Type1 CAD
VFHVRBD0200R05N030 Type1 CAD
VFHVRBD0200R05N035 Type1 CAD
R PRFRAD D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ap APMX HTB DCN CDI DCINX BDX CWX LBX L3 LBB CDX L20 LDRED L15 LCF D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 L1 L L24 FLGT CBDP OAL LPR D4 DCON D2 DCX D8 DAH DAH1 DAH2 DCCB CNT D9 B L2 LH L19 LU LF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
1 1 0.94 6 4 60 0.2 15° 4
1 1 0.94 6 6 60 0.2 15° 4
1 1 0.94 6 8 60 0.2 15° 4
1 1 0.94 6 10 60 0.2 15° 4
1 1 0.94 6 15 60 0.2 15° 4
1 1 0.94 6 20 80 0.2 15° 4
1.5 1.5 1.44 6 4 60 0.3 15° 4
1.5 1.5 1.44 6 6 60 0.3 15° 4
1.5 1.5 1.44 6 10 60 0.3 15° 4
1.5 1.5 1.44 6 15 60 0.3 15° 4
1.5 1.5 1.44 6 20 80 0.3 15° 4
1.5 1.5 1.44 6 25 80 0.3 15° 4
1.5 1.5 1.44 6 30 80 0.3 15° 4
2 2 1.9 6 6 60 0.5 15° 4
2 2 1.9 6 10 60 0.5 15° 4
2 2 1.9 6 15 60 0.5 15° 4
2 2 1.9 6 20 80 0.5 15° 4
2 2 1.9 6 25 80 0.5 15° 4
2 2 1.9 6 30 80 0.5 15° 4
2 2 1.9 6 35 90 0.5 15° 4
  1 2 3 4 5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
