Solid End Mills

MNS_DIN


MNS1010-L10C

Product Information

  • Optimum flute and cutting edge geometry for machining of aluminium alloy

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Stock
Unit of Length M

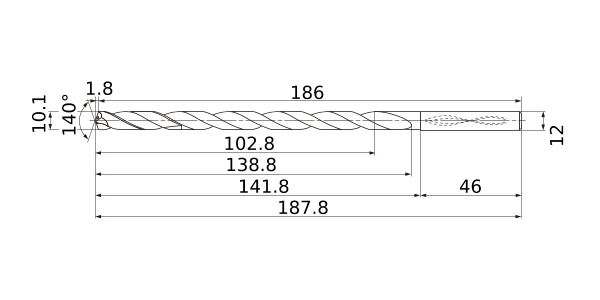

D1 10.1
D4 12
DC 10.1
DCON 12
SIG 140°
LF 186
OAL 187.8
LH 141.8
LU 102.8
LCF 138.8
LS 46
FHA 30°
ld 10
PL 1.8
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.025
Min. Cutting EdgeDiameter Tolerance 0.007
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MNS1010-L10C
CAD
