Solid End Mills >CE6SRB >CE6SRBD0600R050

Solid End Mills

CE6SRB
（Corner radius end mill, short cut length, 4-6 flute）

CE6SRBD0600R050

Product Information

  • Ceramic corner radius end mill with high heat resistance.
  • Capable of softening Ni based alloys by generating heat during machining
  • DO NOT USE ON TITANIUM ALLOYS

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

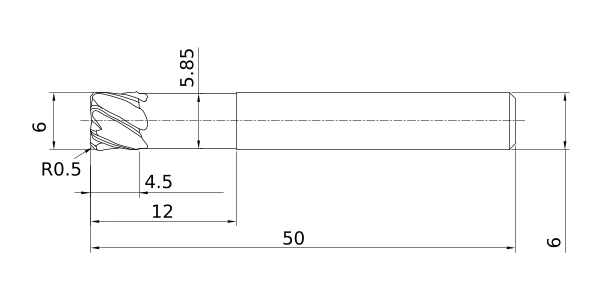

Unit of Length M
DC 6
DCON 6
DN 5.85
LF 50
LU 12
APMX 4.5
FHA 30°
RE 0.5
Peripheral effective cutting edge count: ZEFP 6
Max. Cutting EdgeDiameter Tolerance -0.028
Min. Cutting EdgeDiameter Tolerance -0.006
