Solid End Mills >DF2XLBF >DF2XLBFR0150N160

Solid End Mills

DF2XLBF
（Ball nose, 2 flute, Long neck, For graphite）

DF2XLBFR0150N160

Product Information

  • Diamond coated long-neck ball end mills are ideal for excellent surface finishes on non-ferrous materials.

The actual product may differ from the displayed image.

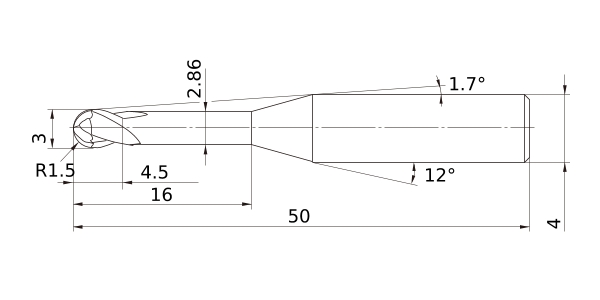

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 3
DCON 4
DN 2.86
B2 1.7°
BHTA2 12°
LF 50
LU 16
APMX 4.5
FHA 30°
RE 1.5
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.01
R Tolerance + 0.01
Coated DF
