Solid End Mills >MPXLRB >MPXLRBD0100R005N030

Solid End Mills

MPXLRB
（Corner radius, Short cut length, Long neck, 2- 4 flute）

MPXLRBD0100R005N030

Product Information

  • 2-4 flute irregular helix end mill with corner radius for reduced vibration when machining stainless and carbon steels.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

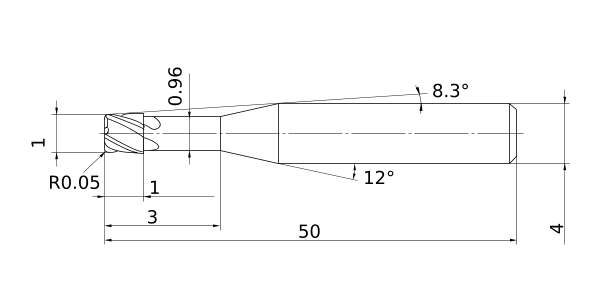

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 1
DCON 4
DN 0.96
B2 8.3°
BHTA2 12°
LF 50
LU 3
APMX 1
FHA 30°
RE 0.05
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.005
R Tolerance + 0.005
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.01
Coated MS+
