Solid End Mills > iMX_RC4F_C

Solid End Mills

iMX_RC4F_C
（Roughing head, 4 flute, with coolant hole）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • The roughing edge geometry reduces cutting resistance. Effective when rigidity of the machine or work piece is low.
  • Centre through coolant hole provides excellent chip evacuation.

The actual product may differ from the displayed image.

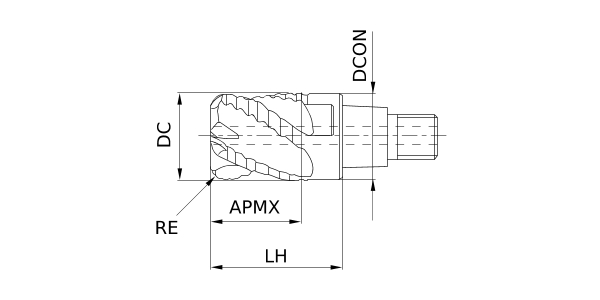

For details, please check the dimensions below.

Type1 [Expand]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
IMX10RC4F100R05010C Type1 CAD   Carbide EP7020
IMX10RC4F100R10010C Type1 CAD   Carbide EP7020
IMX12RC4F120R05012C Type1 CAD   Carbide EP7020
IMX12RC4F120R10012C Type1 CAD   Carbide EP7020
IMX12RC4F120R15012C Type1 CAD   Carbide EP7020
IMX12RC4F120R20012C Type1 CAD   Carbide EP7020
IMX16RC4F160R05016C Type1 CAD   Carbide EP7020
IMX16RC4F160R10016C Type1 CAD   Carbide EP7020
IMX16RC4F160R15016C Type1 CAD   Carbide EP7020
IMX16RC4F160R20016C Type1 CAD   Carbide EP7020
IMX16RC4F160R30016C Type1 CAD   Carbide EP7020
IMX20RC4F200R05021C Type1 CAD   Carbide EP7020
IMX20RC4F200R10021C Type1 CAD   Carbide EP7020
IMX20RC4F200R20021C Type1 CAD   Carbide EP7020
IMX20RC4F200R30021C Type1 CAD   Carbide EP7020
R PRFRAD D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ap APMX HTB DCN CDI DCINX BDX CWX LBX L3 LBB CDX L20 LDRED L15 LCF D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 L1 L L24 FLGT CBDP OAL LPR D4 DCON D2 DCX D8 DAH DAH1 DAH2 DCCB CNT D9 B L2 LH L19 LU LF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
10 10.5 9.7 16 35° 0.5 4 4
10 10.5 9.7 16 35° 1 4 4
12 12.5 11.7 19 35° 0.5 4 4
12 12.5 11.7 19 35° 1 4 4
12 12.5 11.7 19 35° 1.5 4 4
12 12.5 11.7 19 35° 2 4 4
16 16.5 15.5 24 35° 0.5 4 4
16 16.5 15.5 24 35° 1 4 4
16 16.5 15.5 24 35° 1.5 4 4
16 16.5 15.5 24 35° 2 4 4
16 16.5 15.5 24 35° 3 4 4
20 21 19.5 30 35° 0.5 4 4
20 21 19.5 30 35° 1 4 4
20 21 19.5 30 35° 2 4 4
20 21 19.5 30 35° 3 4 4
  1

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
