Indexable End Mills

VPX200_SCREW-IN
（Multi-functional Cutter for High Efficiency Machining）

VPX200R3205AM1640

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

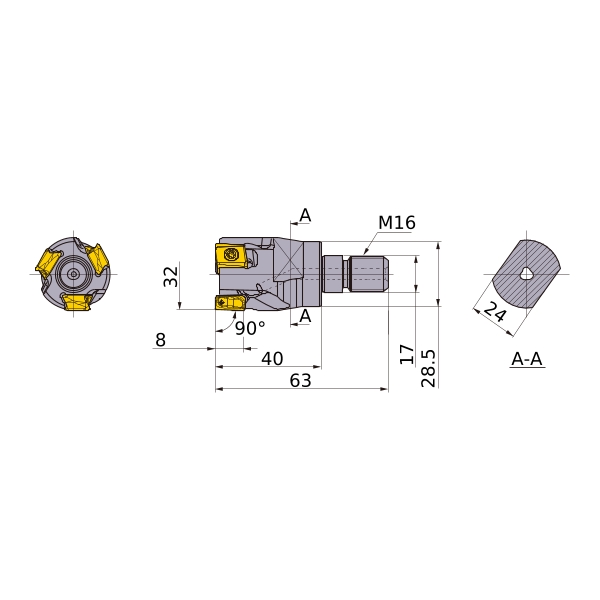

DC 32
DCON 17
DCSFMS 28.5
KAPR 90°
RMPX 0.71°
LF 40
OAL 63
S10 24
APMX 8
GAMP -6°
GAMF -25°
WT 0.21
CRKS M16
Cutting item count: CICT 5
Peripheral effective cutting edge count: ZEFP 5
Face effective cutting edge count: ZEFF 5
