Solid End Mills >VQ4XLRB >VQ4XLRBD0040R005N020

Solid End Mills

VQ4XLRB
（Corner radius, Short cut length, 4 flute, Long neck）

VQ4XLRBD0040R005N020

Product Information

  • Enhancing efficiency with improved chip disposal by adopting the VQ coating.
  • Increased number of flutes provides high efficiency and longer tool life.

The actual product may differ from the displayed image.

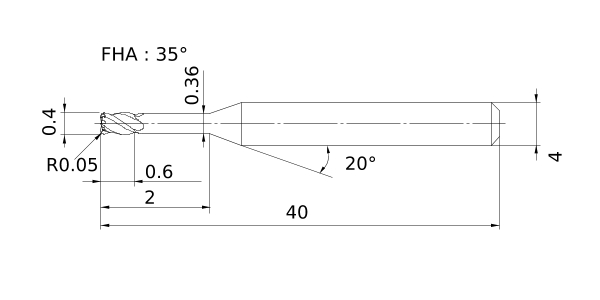

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 0.4
DCONMS 4
DN 0.36
BHTA2 20°
LF 40
LU 2
APMX 0.6
FHA 35°
RE 0.05
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VQ
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
