Solid End Mills

VQJCSRB
（CORNER RADIUS, SEMI LONG CUT LENGTH, 5 FLUTE, IRREGULAR PITCH FLUTES, CHIPBREAKER）

VQJCSRBD1000R250

Product Information

  • Chipbreaker type end mill for efficient chip breaking capabilities that also provides good surface finishes.
  • A high rigidity Smart Miracle vibration damping end mill for high efficiency trochoidal milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

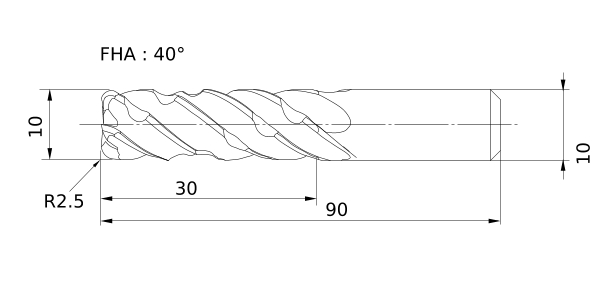

Unit of Length M
DC 10
DCONMS 10
LF 90
APMX 30
FHA 40°
RE 2.5
Peripheral effective cutting edge count: ZEFP 5
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
Coated VQ
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
