Solid End Mills >iMX_C8T_E >IMX10C8T080R10T080E

Solid End Mills

iMX_C8T_E
（Corner radius head, Taper head, Multi-flute, With coolant holes）

IMX10C8T080R10T080E

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock

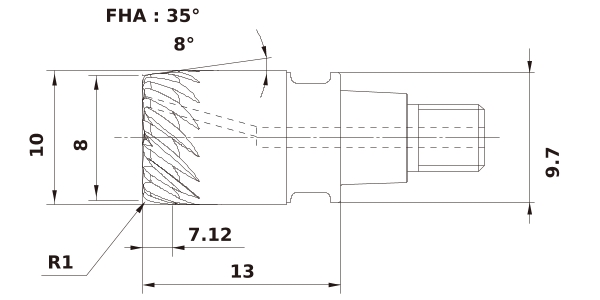

Unit of Length M
DC 8
DCX 10
DCONMS 9.7
BHTA1 8°
LH 13
APMX 7.12
FHA 35°
RE 1
Peripheral effective cutting edge count: ZEFP 8
R Tolerance - -0.015
R Tolerance + 0.015
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
