Spare Parts >H63TH-EV2525R-112

Spare Parts

H63TH-EV2525R-112

Product Information

The actual product may differ from the displayed image.

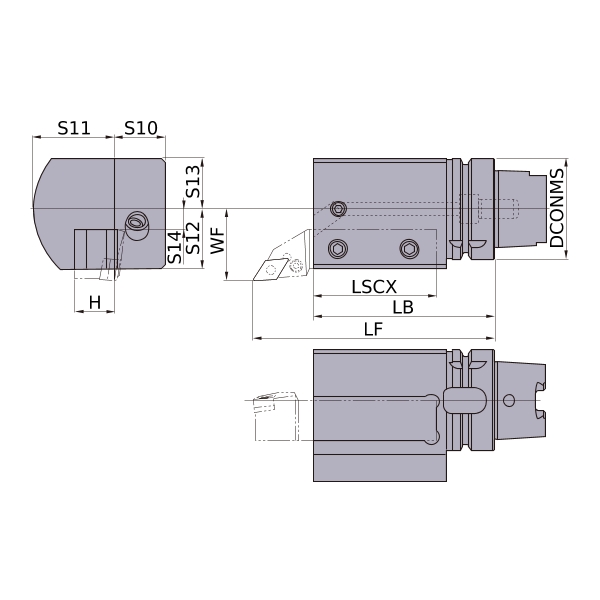

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M

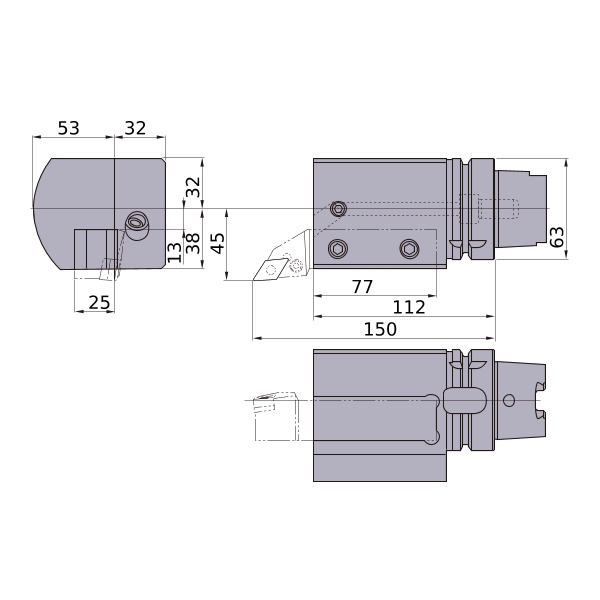

DCONMS 63
LF 150
LB 112
WF 45
H 25
S10 32
S11 53
S12 38
S13 32
S14 13
WT 3.9
LSCX 77
2D Model (DXF)
CAD data name Download
H63TH-EV2525R-112
CAD

3D Detail Model (STP,STL)
CAD data name Download
H63TH-EV2525R-112
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
