IMX16-S28GL50-BT30

Product Information

The actual product may differ from the displayed image.

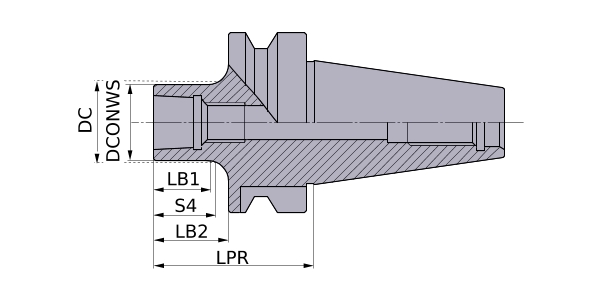

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

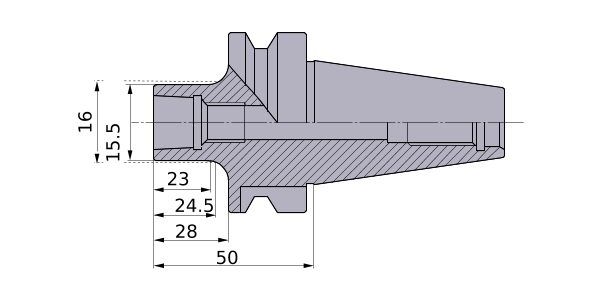

Unit of Length M
DC 16
DCONWS 15.5
LPR 50
LB1 23
LB2 28
S4 24.5
2D Model (DXF)
CAD data name Download
IMX16-S28GL50-BT30
