Spare Parts >SLV320110120A

Spare Parts

SLV320110120A

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

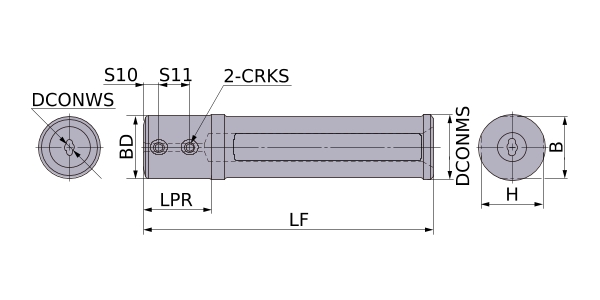

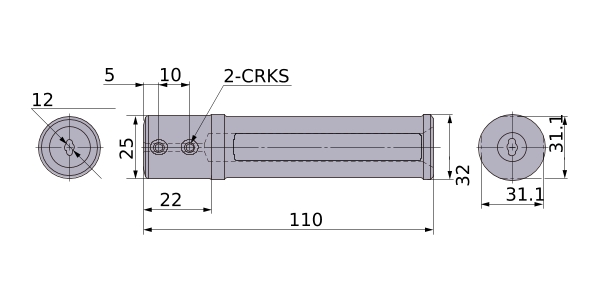

Unit of Length M
DCONWS 12
DCONMS 32
BD 25
B 31.1
LF 110
LPR 22
H 31.1
S10 5
S11 10
